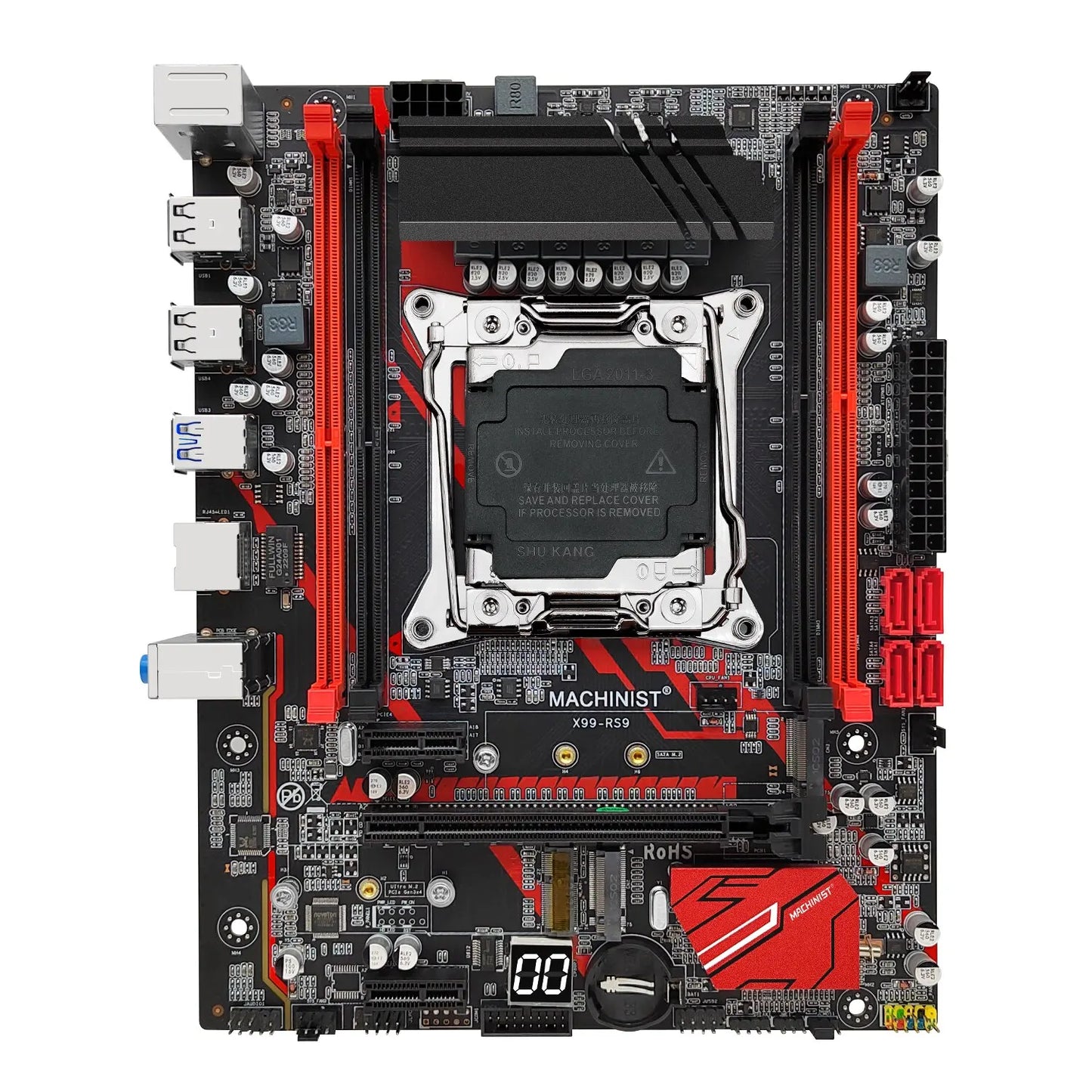

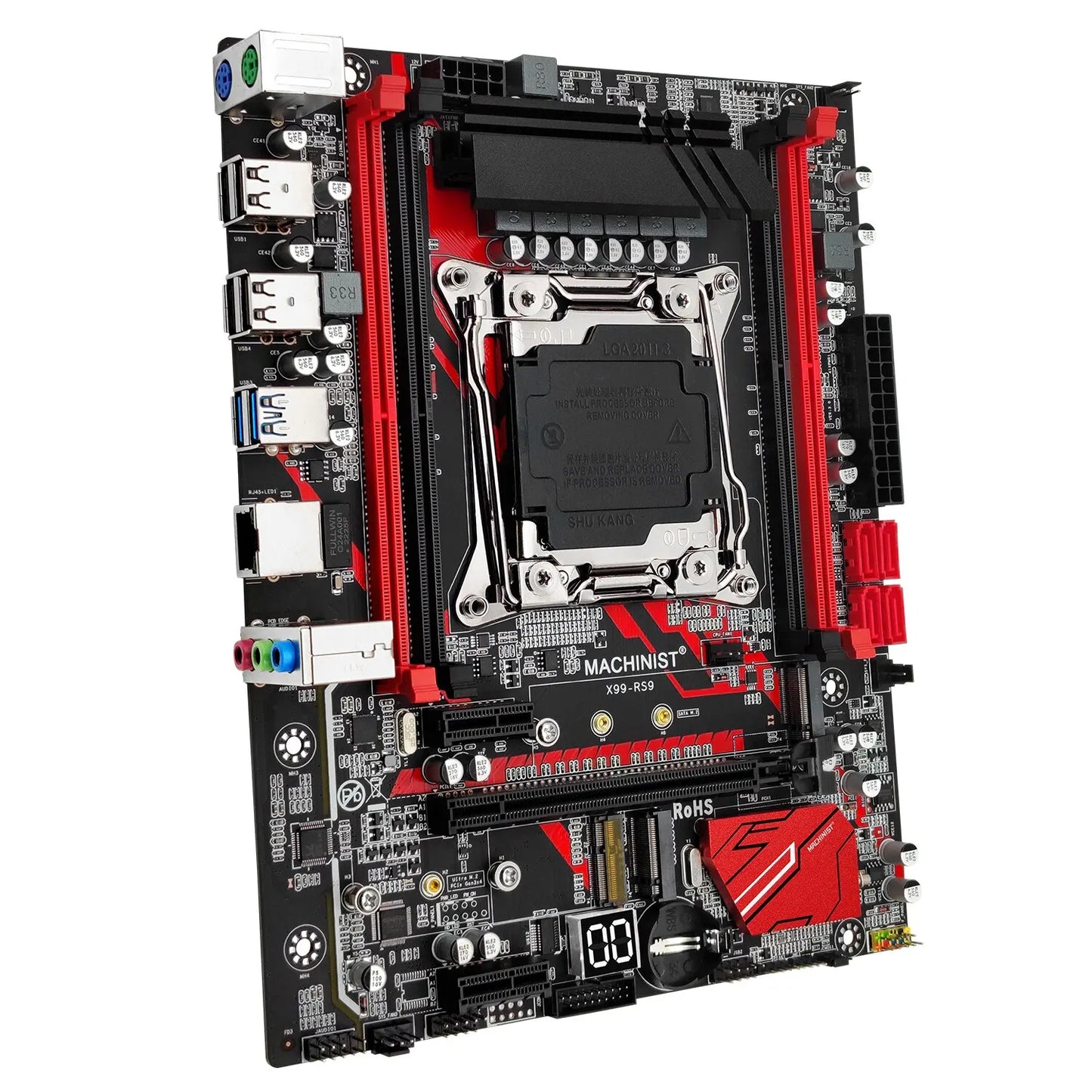

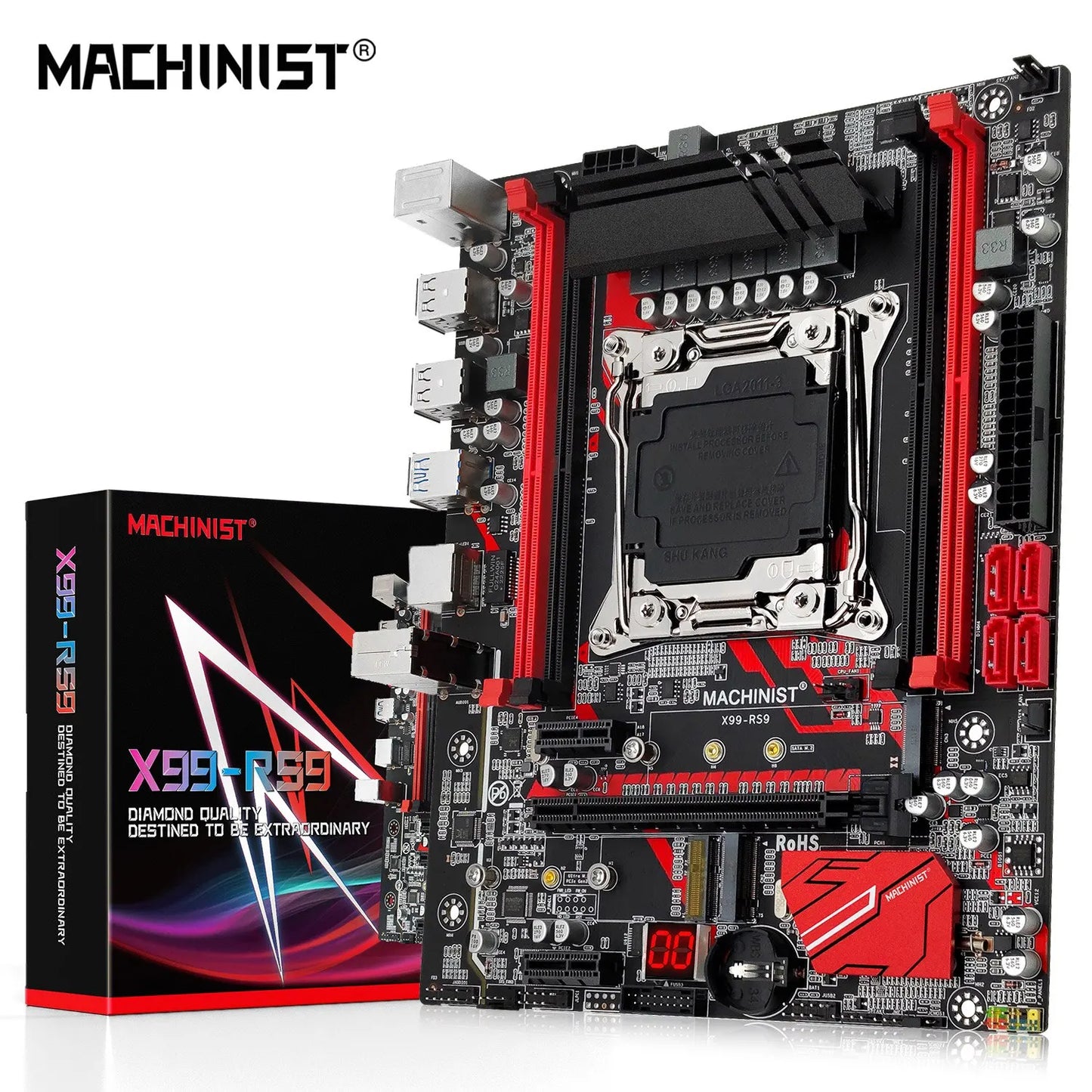

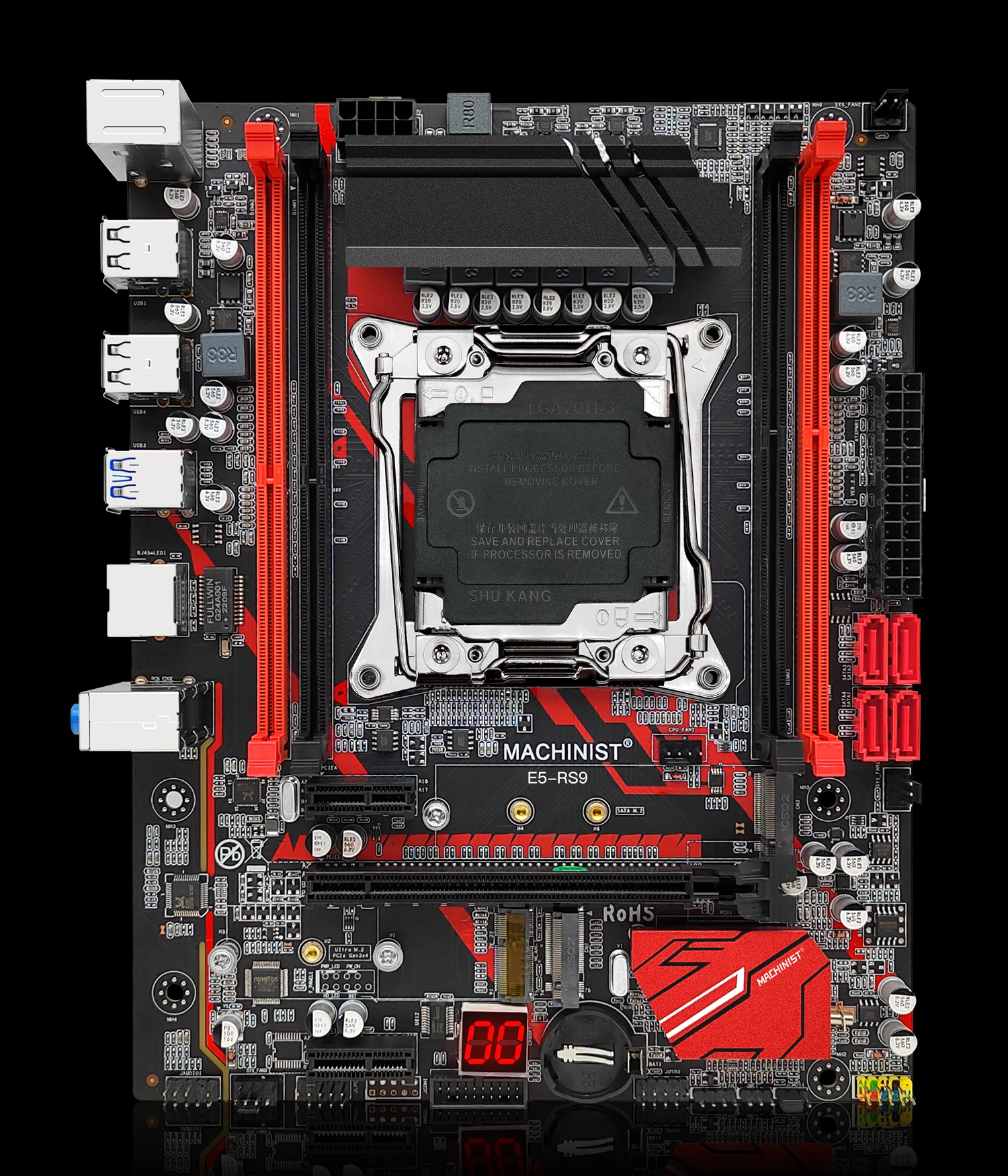

MACHINIST RS9 X99 Motherboard Support Xeon E5 V3 V4 LGA 2011-3 CPU Processor DDR4 RAM Four Channel and SATA PCI-E M.2 Slot

> >Report contains:

Motherboard: MACHINIST E5 RS9 LGA 2011-3 motherboard *1.

Gift accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink *1.

(!!!All are manually tested before delivery and then packed. Please understand if there are any gifts missing!)

> >Motherboard information:

Brand: MACHINIST.

Motherboard model: E5 RS9.

Processor: Support Intel LGA2011-3 pin series processor.

Chipset: B85/Q87 Chipset.

> >Memory:

Technology: Quad-channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.

Maximum capacity 128GB (32G x 4).

Memory slot: 4 * 288 PIN DDR4.

Supported memory type: The memory type supports DDR4 desktop and server memory.

(Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may be incompatible.)

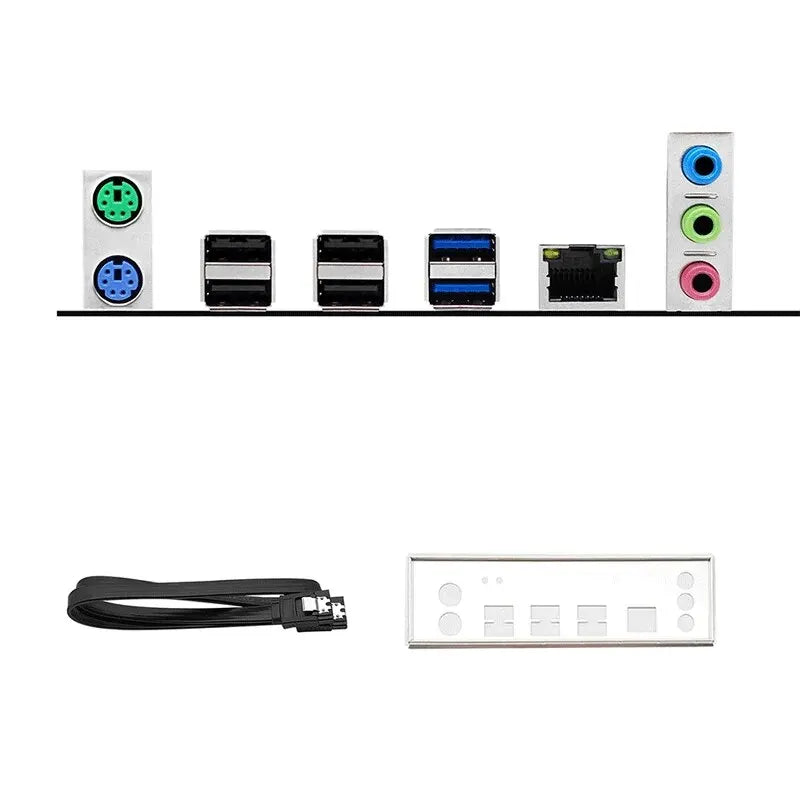

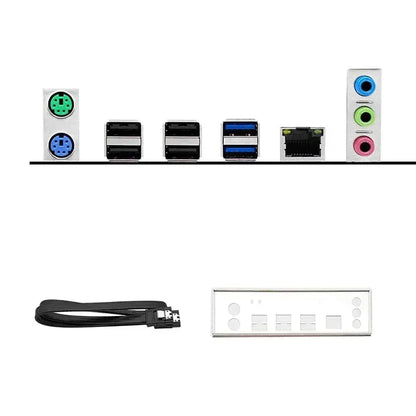

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interface: 6 USB2.0; 2 USB3.0.

Ethernet: 1 Gigabit network card.

Audio: 1 (Mic-in, Line-out, Line-in).

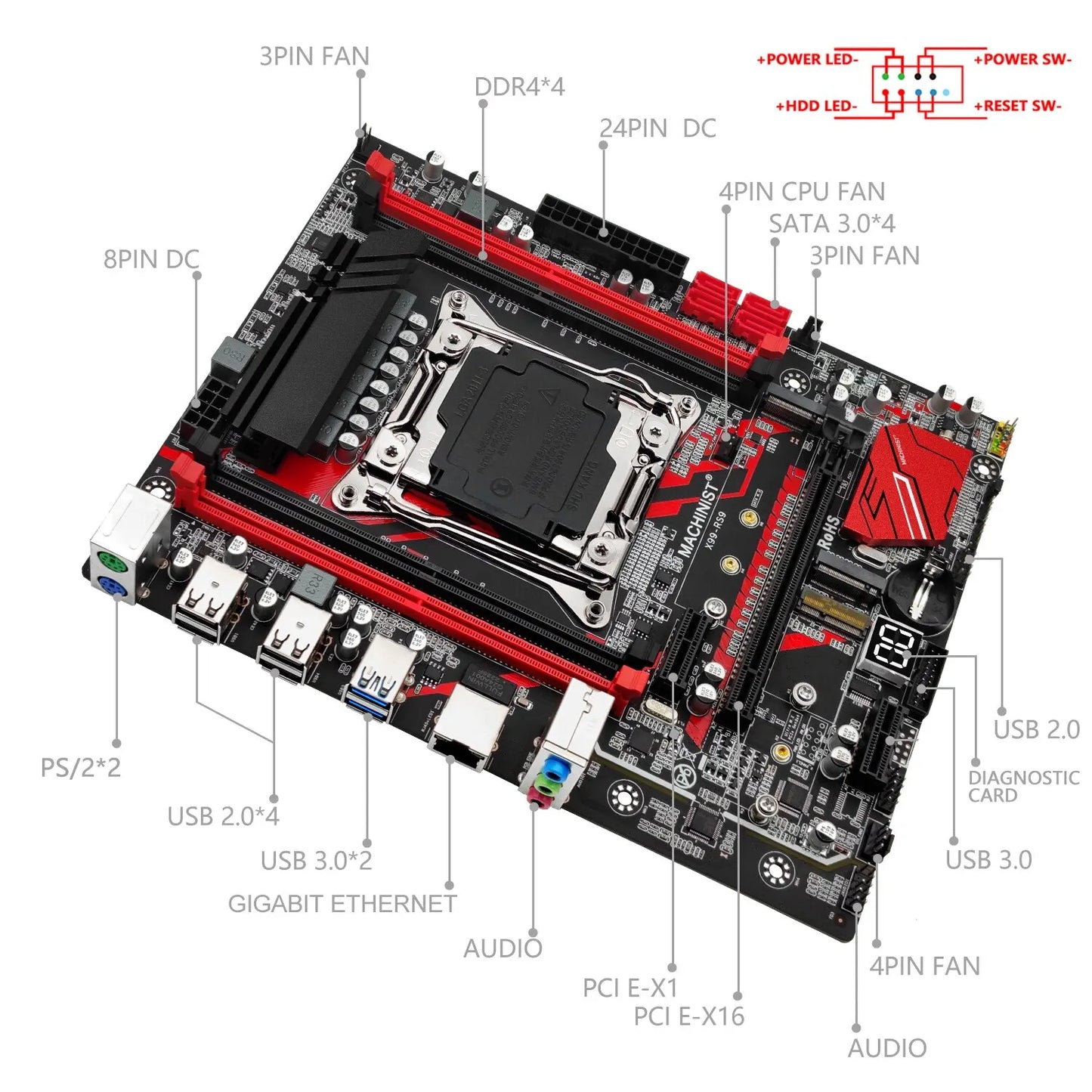

>> Internal connector:

PCIe: 1 PCIe 16x, 1 PCIe 1x.

F_PANEL: 1 2x5Pin pin.

SATA ports: 4 (4 SATA3.0);

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket;

JAudio: 1 2x5Pin pin;

Diagnostic card: 1 piece;

M.2 interface: 2 (1 PCIE +2 SATA)

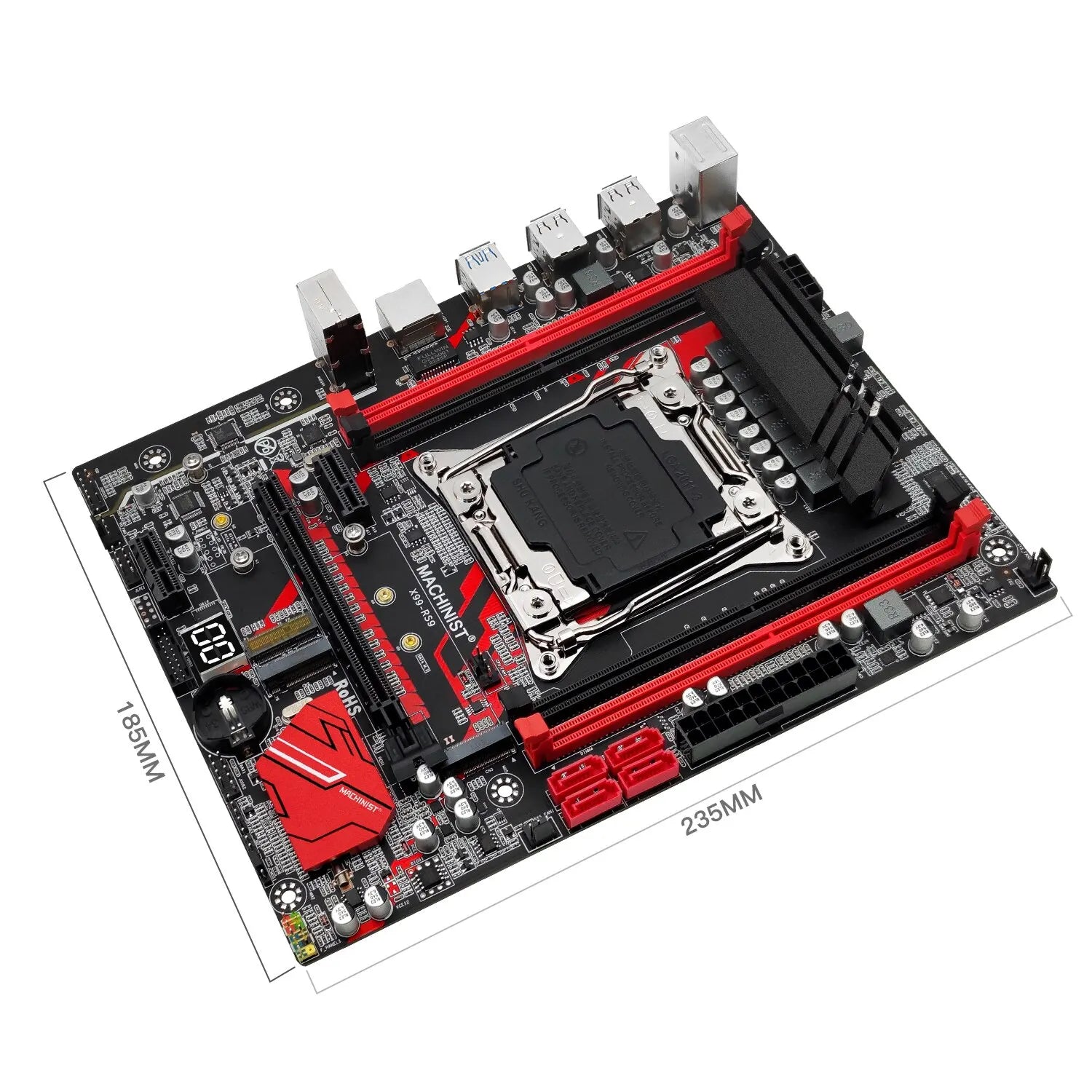

Dimensions: 235mm * 185mm.

Mainboard weight (including packaging): about 0.95 kg.

>> Regarding tariff issues, please make sure you can solve the customs clearance issues by yourself. If you can't solve it, we do not recommend that you buy goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>>Note:

(1) The color of the bottom plate may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1-3mm.

(3) Due to different displays and different light, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a strong power supply. Please make sure your power supply is sufficient to support this platform. (at least 500w brand power supply)

(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
